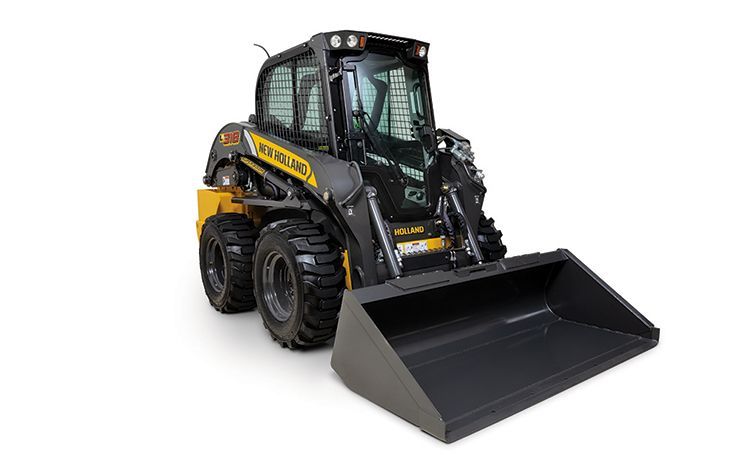

2023 New Holland L318 Skid steer
Meet your challenges head-on with the L318 skid steer loaders from New Holland. The L318 is designed to make your workday more productive and comfortable with noteworthy dump height and reach, swift cycle times, and time-saving travel speeds.
SPECIFICATIONS
Lift Geometry Vertical
Cab Type Swing Up - Meshed
Tire Size - Standard10 x 16.5
Engine Manufacturer - ISM
Engine Model - N4LDI-TA-45SL-01
Number Of Cylinders - 4
Aspiration - Turbocharger Aftercooled
Displacement in³ - 135
Rated Speed rpm - 2800
SAE Gross Power hp - 60
Length - With Bucket in. - 131.9
Width - No Bucket in. - 66.1
Overall Height in. - 77.7
Ground Clearance in. - 7
Wheel base in. - 44.4
Rear Departure Angle° - 23
Height To Hinge Pin in. - 120
Dump Angle° - 52
Dump Height - Maximum in. - 93.7
Reach - Max Dump Height in. - 30.8
Rollback - Ground Level° - 35
Turning Radius - Bucket Corner in. - 79.6
HOW TO USE
DETAILS
New Holland Tier 4 Final engines use less fuel, are easy to maintain - decreasing operating costs - and still deliver powerful 60 HP (45 kW) performance to the L318. The reliable hydraulic system delivers fast cycle times, raising in just 2.8 seconds and lowering in only 2.3 seconds. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional Ride Control and Self Level to make those long work days easier and more productive.
